100W Rigid Solar Panel Kit

Description

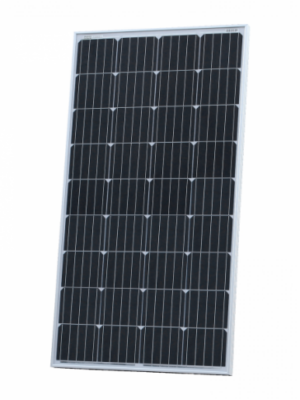

100W solar panel with 5m cable specifications:

• Peak power: 100W
• Maximum power voltage: 20.2V
• Maximum power current: 4.95A
• Open circuit voltage: 23.9V
• Short circuit current: 5.26A
• Power allowance range: +/- 3%
• Dimensions: 845 x 670 x 30mm
• Weight: 7kg
• 4 mounting holes 9 x 11 mm
• 2 x 5m of high quality single core solar cable 4.0mm cross section
• Male and female MC4 connectors

Victron SmartSolar MPPT 75/15 15A solar charge controller specifications:

– The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
– Fully automated operation and auto 12 / 24V selection
– 3 pairs of terminals (solar panel, battery, load) for wires up to 6mm2
– Inbuilt bluetooth
– Max solar panel voltage: 75V
– Max solar panel power: 220W (12V) / 440W (24V)
– Temperature sensor for automatic compensation (-16mV °C resp. -32mV °C)
– Comprehensive electronic protection features
– Communication port: RS232 / TTL for VE Direct accessories
– Self-consumption: 12V: 25mA / 24V: 15mA
– Load Current: 15A
– Working temperature: -30°C to +60°C
– IEC/EN certified
– Enclosure: IP43 (electronic components) / IP22 (connection area)
– Pollution Degree rating: PD3
– Dimensions: 100 x 113 x 40 mm
– Mounting dimensions: 99 x 84 mm
– Weight: 500g
– 4 x mounting holes for ease of installation
