Description

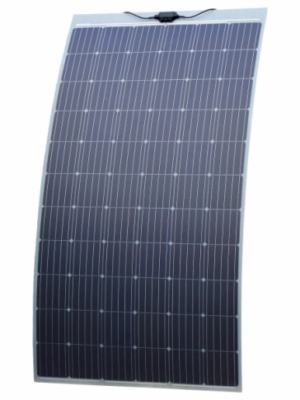

160W Semi-Flexible Solar Panel Specifications:
- Peak power: 160W
- Maximum power voltage: 20.2V
- Maximum power current: 7.92A
- Open circuit voltage: 23.9V
- Short circuit current: 8.40A
- Power allowance range: +/- 5%
- Solar Panel dimensions: 1345 x 665 x 4 mm
- Junction Box diameter: 30 mm
- Weight: 5.70 kg
- 1 x 3m high quality dual core solar cable attached (4mm cross section)
Victron SmartSolar MPPT 75/15 15A solar charge controller specifications:
– The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
– Fully automated operation and auto 12 / 24V selection
– 3 pairs of terminals (solar panel, battery, load) for wires up to 6mm2
– Inbuilt bluetooth
– Max solar panel voltage: 75V
– Max solar panel power: 220W (12V) / 440W (24V)
– Temperature sensor for automatic compensation (-16mV °C resp. -32mV °C)
– Comprehensive electronic protection features
– Communication port: RS232 / TTL for VE Direct accessories
– Self-consumption: 12V: 25mA / 24V: 15mA
– Load Current: 15A
– Working temperature: -30°C to +60°C
– IEC/EN certified
– Enclosure: IP43 (electronic components) / IP22 (connection area)
– Pollution Degree rating: PD3
– Dimensions: 100 x 113 x 40 mm
– Mounting dimensions: 99 x 84 mm
– Weight: 500g
– 4 x mounting holes for ease of installation
